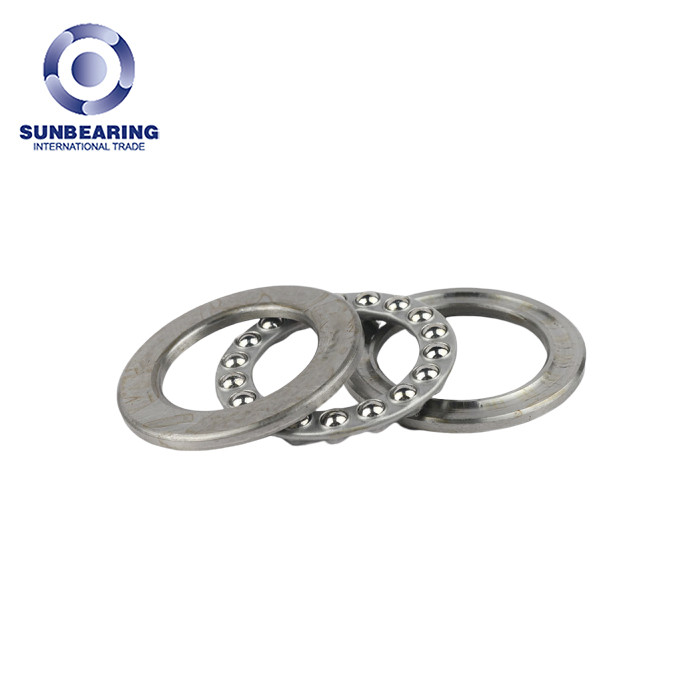

SUNBEARING 51207 Thrust Ball Bearing Silver 35*62*18mm Chrome Steel GCR15

SUNBEARING 51207 Thrust Ball Bearing Silver 35*62*18mm Chrome Steel GCR15
SUNBEARING 51207 Thrust Ball Bearing Silver 35*62*18mm Chrome Steel GCR15
SUNBEARING 51207 Thrust Ball Bearing Silver 35*62*18mm Chrome Steel GCR15SUNBEARING 51207 Thrust Ball Bearing Silver 35*62*18mm Chrome Steel GCR15SUNBEARING 51207 Thrust Ball Bearing Silver 35*62*18mm Chrome Steel GCR15SUNBEARING 51207 Thrust Ball Bearing Silver 35*62*18mm Chrome Steel GCR15SUNBEARING 51207 Thrust Ball Bearing Silver 35*62*18mm Chrome Steel GCR15
CategoriesThrust Ball Bearing
AlbumView larger image
BrandSUN BEARING
Model51207
Unit PriceUS $ 1.43 / piece
FOB portDALIAN
Terms of PaymentL/C, T/T, Paypal, Alibaba Trade Assurance
Download DOC
Update Time2020-02-29
Detail Information

Product Description

51207 thrust ball bearing

Thrust Ball Bearing 51207

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

0.22kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Open

Certificate

ISO9001:2008

Brief Introduction

Thrust ball bearing 51207 with size 35x62x18mm and weight 0.22 kg from China bearing factory

Number of Row

Single

Dimensions

d-Bore Diameter

35mm

D-Outer Diameter

62mm

Precision Rating

P5 P6 P4 P2 P0

Clearance



C2 C3 C4 C5 C0

H-Total Width

18mm

Basic Load Ratings

Cr Dynamic Load Rating

35100N

C0r Static Load Rating

73500N


Thrust ball bearings are classified into those with flat seats or aligning seats depending on the shape of the outer ring seat (housing washer). They can sustain axial loads but no radial loads. For Single-Direction Thrust Ball Bearings, pressed steel cages and machined brass cages are usually used The cages in Double- Direction Thrust Ball Bearings are the same as those in Single-Direction Thrust Ball Bearings of the same diameter series.
 thrust ball bearing
