Hot Sale 5 Axis CNC EDM Wire Cut Machines DK7735 High Performance Wirecut Machine
| Share | |
|---|---|
| Categories | Machinery Equipment |
| Brand | SUNBEARING Rolling Bearing Manufacturer |
| Model | DK7735 |
| Dimension(L*W*H) | 1400*1100*1600 MM |
| Processing | ±0.01 |
| Best Surface Roughness | 2.5μm |
| Max.load (kg) | 450 |
| Voltage | 380V |
| Weight (KG) | 1100 |
| Key Selling Points | Automatic |
| Product name | DK7735 |
| Work Table Size | 350*450 mm |
| Precision | 0.015mm |
| Condition | New |
| Marketing Type | Ordinary Product |
| FOB port | Dalian |
| Terms of Payment | L/C, D/A, D/P, Western Union |
Detail Information
FEATURES

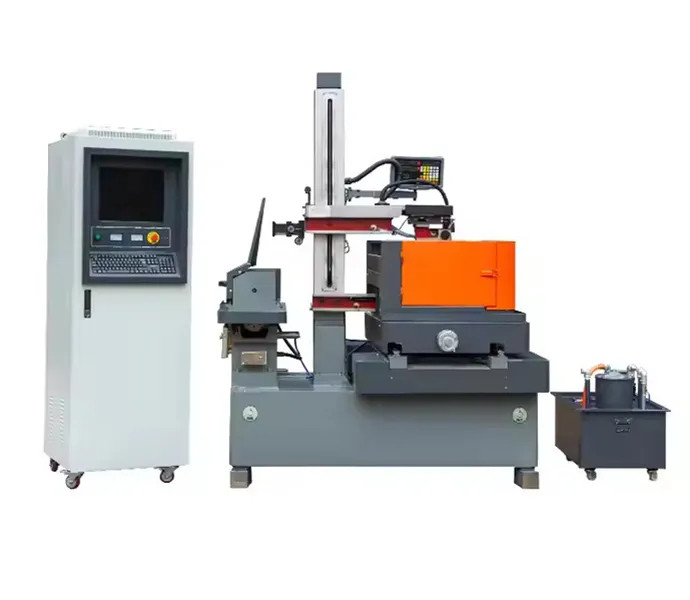

CNC EDM Wire Cut Machines DK7735
The DK7735 Wire EDM is a high-precision CNC wire-cut machine featuring a 350x450mm worktable, ±6° taper cutting capability, and exceptional surface finish. Ideal for manufacturing molds, dies, and complex precision components, it offers reliable performance with an excellent cost-performance ratio
PRODUCT DESCRIPTION
Name | Wire Cut Machines DK7735 | ||
Size | 1400*1100*1600 MM | ||
Processing | ±0.01 | ||
Best Surface Roughness | 2.5μm | ||
MOQ | 1 Set | ||
Shippment | 1) Usually Air transportation or Sea transportation 2) Fast Air transportation: DHL, Fedex, UPS, TNT. etc. | ||
Max.load (kg) | 450 | ||
Voltage | 380V | ||
Details
FAQ
Q: What is our factory product range?
A : DK7725-DK77100
Q: How to order?
A : Please send us your purchase order by Email or Fax, or you can ask us to send you Proforma Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, Specification (size, material, color, logo and packing requirement), Artwork or Sample will be the best.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder’s contact details if there is any in China.
Q: What is the maximum workpiece size and cutting thickness for the DK7735 Wire EDM?
A: The DK7735 Wire EDM features a worktable with dimensions of 350mm × 450mm, accommodating workpieces up to 450mm in length and 350mm in width. The maximum cutting thickness is 400mm (with optional extensions available upon request). For larger workpieces, we also offer other models in our product line, such as the DK7740 and DK7750. Please feel free to contact our sales team with your specific workpiece dimensions, and we will recommend the most suitable machine for your needs.
Q: What is your after-sales support and warranty policy for wire EDM machines?
A : We provide comprehensive after-sales support, including:
1) Warranty: 12-month standard warranty covering major mechanical and electrical components (consumables excluded).
2) Installation & Training: Free on-site or remote installation guidance and operator training until your team is fully proficient.
3) Technical Support: 24/7 online technical assistance via phone, email, or video call.
4) Spare Parts: Fast delivery of genuine spare parts, with stocked consumables (wire electrodes, filters, dielectric fluid) available for immediate shipment.
We also maintain a global service network to ensure minimal downtime for your production. For urgent issues, we guarantee a response within 24 hours.
