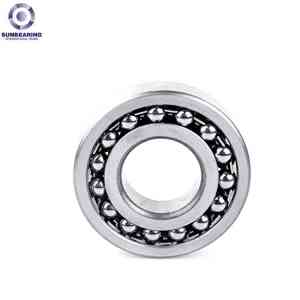

SUNBEARING 1310 Silver 50*110*27mm Chrome Steel GCR15 Self Aligning Ball Bearing

SUNBEARING 1310 Silver 50*110*27mm Chrome Steel GCR15 Self Aligning Ball Bearing
SUNBEARING 1310 Silver 50*110*27mm Chrome Steel GCR15 Self Aligning Ball Bearing
SUNBEARING 1310 Silver 50*110*27mm Chrome Steel GCR15 Self Aligning Ball BearingSUNBEARING 1310 Silver 50*110*27mm Chrome Steel GCR15 Self Aligning Ball BearingSUNBEARING 1310 Silver 50*110*27mm Chrome Steel GCR15 Self Aligning Ball Bearing
CategoriesSelf-aligning Ball Bearing
AlbumView larger image
BrandSUNBEARING
Model1310
ColorSilver
Unit PriceUS $ 7.86 / piece
FOB portDALIAN
Terms of PaymentL/C, T/T, Paypal, Alibaba Trade Assurance
Download DOC
Update Time2020-06-04
Detail Information

Product Description

1310 self aligning ball bearing

Self Aligning Ball Bearing 1310

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

1.21kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Open

Certificate

ISO9001:2008

Feature

With tapered bore for mounting by means of adapter sleeve

Number of Row

Single

Dimensions

d-Bore Diameter

50mm

D-Outer Diameter

110mm

Precision Rating

P5 P6 P4 P2 P0

Clearance



C2 C3 C4 C5 C0

H-Total Width

27mm

Basic Load Ratings

Cr Dynamic Load Rating

43500N

C0r Static Load Rating

14100N






Features:

When shaft shell deflection occurs, they can be automatically adjusted without increasing the burden on the bearings. They can withstand higher radial load, but also bear certain axial load. This kind of bearing's outer ring raceway is spherical, aligning it with the performance, when the bend or tilt axis force leaves the center line of the inner and outer rings relative to the center line of slope less than 1 ° to 2.5 °, the bearings can still work.With two structures of bore cylindrical or tapered and retainers made of steel sheet or synthetic resins, the bearings' spherically formed outer ring raceways allows for misalignment within 3 degree deflection between inner ring and outer ring so as to compensate concentricity and deflection errors.
