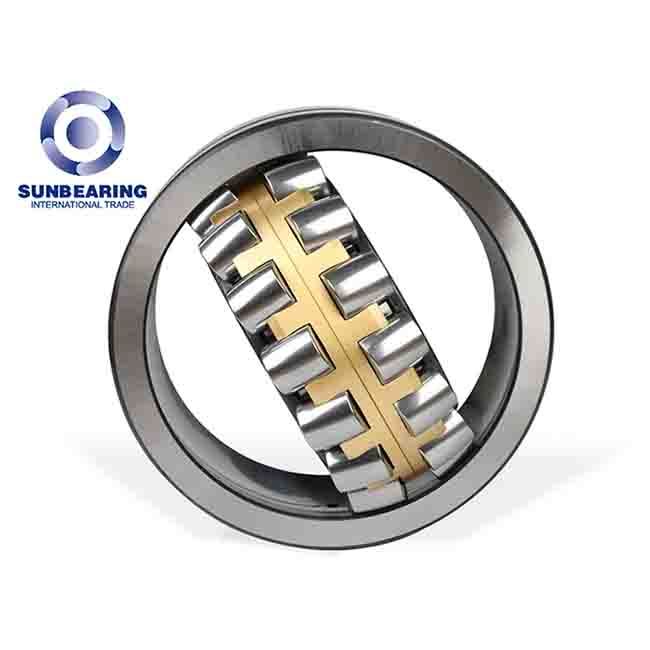

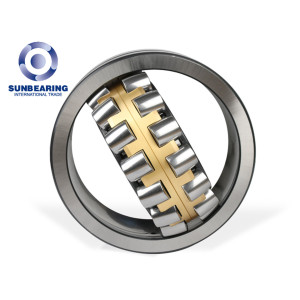

SUNBEARING Spherical Roller Bearing 24144 Silver 220*370*150mm Chrome Steel GCR15

SUNBEARING Spherical Roller Bearing 24144 Silver 220*370*150mm Chrome Steel GCR15

SUNBEARING Spherical Roller Bearing 24144 Silver 220*370*150mm Chrome Steel GCR15
SUNBEARING Spherical Roller Bearing 24144 Silver 220*370*150mm Chrome Steel GCR15SUNBEARING Spherical Roller Bearing 24144 Silver 220*370*150mm Chrome Steel GCR15SUNBEARING Spherical Roller Bearing 24144 Silver 220*370*150mm Chrome Steel GCR15SUNBEARING Spherical Roller Bearing 24144 Silver 220*370*150mm Chrome Steel GCR15SUNBEARING Spherical Roller Bearing 24144 Silver 220*370*150mm Chrome Steel GCR15
CategoriesSpherical Roller Bearing
AlbumView larger image
BrandSUN BEARING
Model24144
FOB portDALIAN
Terms of PaymentL/C, Western Union, T/T, Paypal
Download DOC
Update Time2019-12-11
Detail Information
   Product Description

Spherical Roller Bearing 24144

Specification

Design Units

Metric

Structure

Roller Bearing

Weights

66.3kgs

Cage Material

Steel Cage.Brass Cage.Nylon Cage

Material

Chrome Steel GCR15

Ball Type

Copper Roller

Seals Type

Open

Certificate

ISO9001:2008

Feature

The friction coefficient is small, suitable for high speed.

Number of Row

Double

Dimensions

d-Bore Diameter

220mm

D-Outer Diameter

370mm

Precision Rating

P0 P5 P4 P6 P2

Clearance



C2 C3 C4 C5 C0

H-Total Width

150mm

Basic Load Ratings

Cr Dynamic Load Rating

2530000N

C0r Static Load Rating

3250000N



Introduction of spherical roller bearing 24144


Self-aligning roller bearing is designed to adapt to the circumstance of heavy load. It has

two rows of symmetric spherical rollers.The rollers may freely adjust position in the outer

spherical raceway,which may compensate the shaft deformation and non-alignment error

of bearing seat.

The quantity,length and diameter of roller in self-aligning roller bearing are the max.value

that the structure allows.The close contact between the roller and raceway ensures the

uniform stress distribution and enables the high bearing capacity of bearing.

· printing presses, paper mills or coaters in high precision execution

· very arduous operating conditions, e. g.continuous casters

· high temperature applications

· mounting with loose fit on roll necks

· railway vehicles

Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand

axial load in either direction. A high radial load capacity, especially suitable for heavy loads

or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway

is spherical shape, so the good performance of its self-aligning, can compensate concentricity

error.
