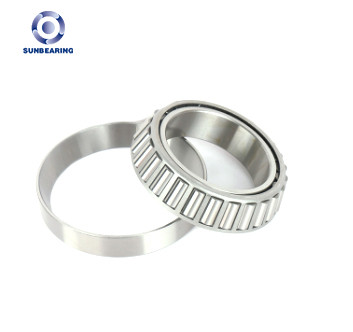

32056X Tapered Roller Bearing 280*420*87mm SUNBEARING

32056X Tapered Roller Bearing 280*420*87mm SUNBEARING

32056X Tapered Roller Bearing 280*420*87mm SUNBEARING
32056X Tapered Roller Bearing 280*420*87mm SUNBEARING32056X Tapered Roller Bearing 280*420*87mm SUNBEARING32056X Tapered Roller Bearing 280*420*87mm SUNBEARING32056X Tapered Roller Bearing 280*420*87mm SUNBEARING32056X Tapered Roller Bearing 280*420*87mm SUNBEARING
CategoriesTapered Roller Bearing
BrandSUNBEARING Rolling Bearing Manufacturer
Model32056X
ColorSilver
FOB portDALIAN
Terms of PaymentL/C, T/T, Paypal, Alibaba Trade Assurance
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information

32056X Tapered Roller Bearing 280*420*87mm SUNBEARING

32056X bearing

Product Description

Bore diameter:

280 mm

Reference speeds

1 000 r/min

Outside diameter:

420 mm

Limiting speed

1 300 r/min

Overall width:

87 mm

Cage material:

Steel

Bore type:

Straight

Bearing material:

Steel

Outer ring type:

Split

Cage type:

Inner Ring Guided

Internal clearance:

C0

Precision rating:

Not Rated

Closure type:

Open

Weight:

39.6KG

Lubrication hole type:

Lubrication Groove & Hole

D1

348mm

Dynamic load capacity:

1210kN

C

65mm

Static load capacity:

2360kN

a

89mm

32056X Tapered Roller Bearing Short Description

Single-row tapered roller bearings can withstand radial loads and axial loads in one direction. When the bearing is subjected to a radial load, an axial component will be generated, so when another bearing that can withstand the axial force in the opposite direction is needed to balance it.

Features

Taper roller bearings have the logarithmic contact profile that provides optimum stress distribution over the roller/raceway contacts. The special design of the sliding surfaces of the guide flange and large roller ends considerably promote lubricant film formation in the roller end/flange contacts. The resulting benefits include increased operational reliability and reduced sensitivity to misalignment.

Single Row Taper Bearing Application

tapered roller bearing application

Tapered roller bearings are usually separated, that is, the tapered inner ring assembly consisting of the inner ring with roller and cage assembly can be installed separately from the tapered outer ring (outer ring).
Tapered roller bearings are widely used in the automotive, rolling mill, mining, metallurgy, plastic machinery, and other industries.
