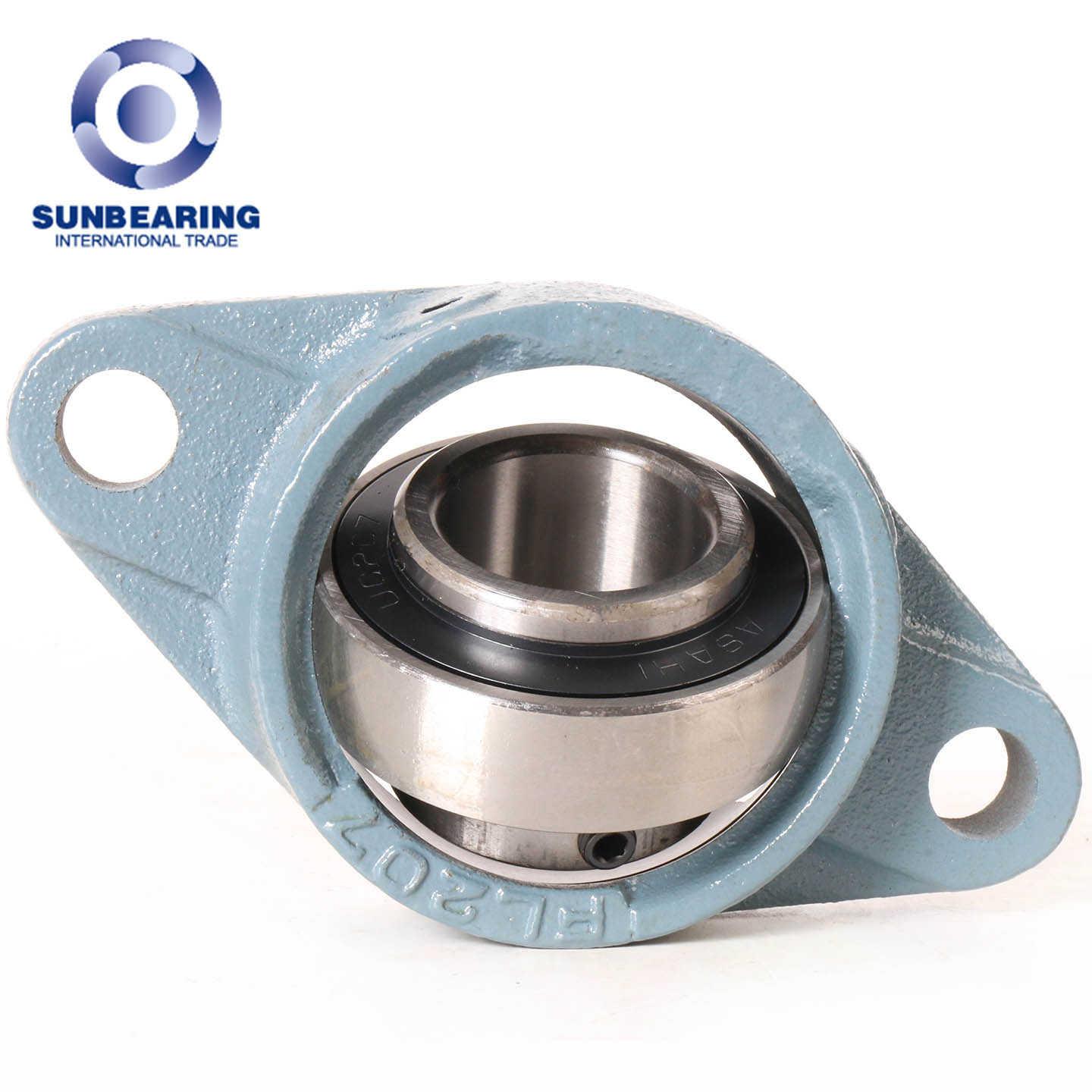

SUNBEARING Pillow Block Bearing UCFL207 Light Blue 35*161*42.9mm Chrome Steel GCR15

SUNBEARING Pillow Block Bearing UCFL207 Light Blue 35*161*42.9mm Chrome Steel GCR15

SUNBEARING Pillow Block Bearing UCFL207 Light Blue 35*161*42.9mm Chrome Steel GCR15
SUNBEARING Pillow Block Bearing UCFL207 Light Blue 35*161*42.9mm Chrome Steel GCR15SUNBEARING Pillow Block Bearing UCFL207 Light Blue 35*161*42.9mm Chrome Steel GCR15SUNBEARING Pillow Block Bearing UCFL207 Light Blue 35*161*42.9mm Chrome Steel GCR15SUNBEARING Pillow Block Bearing UCFL207 Light Blue 35*161*42.9mm Chrome Steel GCR15SUNBEARING Pillow Block Bearing UCFL207 Light Blue 35*161*42.9mm Chrome Steel GCR15
CategoriesPillow Block Bearing
AlbumView larger image
BrandSUN BEARING
ModelUCFL207
FOB portDALIAN
Terms of PaymentL/C, Western Union, T/T, Paypal
Download DOC
Update Time2019-08-26
Detail Information
   Product Description

Product Name

Pillow Block Bearing UCFL207

Structure

Pillow block Bearing

Seals

Rubber Seal

Bore Size

35 mm

Bore Type

Round

Outside Diameter

161mm

Duty Type

Medium Duty, Heavy Duty and Others

Width

42.9 mm

Operating Temperature Range:

-15 to +100°C

Material

Chrome Steel , Carbon Steel ,  Stainless Steel

Lubrication Type:

Oil; Grease;

Cage

GCR 15, Stainless steel etc.

Series:

UCFL

Certificate

ISO9001:2008

Features

Bearing chamfer rounded uniform / smooth

Colour

Light Blue

Bearing Structure

Spherical Surface Ball Bearing

The Number Of  Row

Single

Weight

0.48kgs

Clearance

C2 C0 C3 C4 C5

Tolerance

ABEC1  ABEC3  ABEC5  ABEC7




Note:Pillow block bearings consist of a sealed single-row ball bearing with a spherical outer ring which is mounted in a housing. Because of the spherical outer surface of the bearing, shaft misalignment can be compensated for. The bearings are manufactured with a plus tolerance. This results in transition or press fits when using shafts with h-tolerances. The shaft is secured by grub screws on the inner ring.

In normal applications, pillow block bearings are maintenance-free due to the lifetime lubrication. In difficult environmental conditions re-lubrication can be carried out over the grease nipple.

All housing dimensions are nominal dimensions for which the usual casting tolerances must be taken into consideration.Temperature range:-15 °C to +100 °C.



How is a Pillow Block Constructed?


The configuration of a pillow block bearing is as follows:

· Housing: The block housing has mounting holes to enable the pillow block bearing to be attached to various surfaces. An "unsplit" pillow block housing supports the base while also wrapping around the bearing ring as one complete piece. "Split" pillow block housings allow the housing cap to be removed from the base of the pillow block. Most housings are comprised of cast iron or steel, although in more stressful environments aluminum may be used.

· Outer Ring: The outer ring of the pillow block bearing is circular shaped on the outside and contains the working parts of the bearing.

· Grease Nipple and Hole: The grease nipple extends from the outer ring to allow for lubrication. The hole below is where the grease flows in order to keep the inner parts properly lubricated.

· Seal: The seal prevents dirt and other foreign substances from contaminating the inner workings of the bearing.

· Ball "Runner Cage": This is where the ball bearings are contained in order to protect them while allowing them to freely roll inside of the round cage.

· Hex-Shaped Set Screw: For connecting and securing the shaft inside of the bearing, while allowing tension to be applied or diminished.

· Inner Ring: This is what the cage rotates on, while also securing the object needing to rotate.


Applications of a Pillow Block Bearing

Uses of pillow block bearings include industrial or light conveyor setups such as assembly lines or other manufacturing and production environments. They are most commonly used for shafting and rotating parts while mounted to a base surface. Their diversity and design allow them to be used on most any surface, including inclining, horizontal, or vertical mounting structures. In general, a pillow block bearing is frequently found anywhere that a linear application and execution are required.
