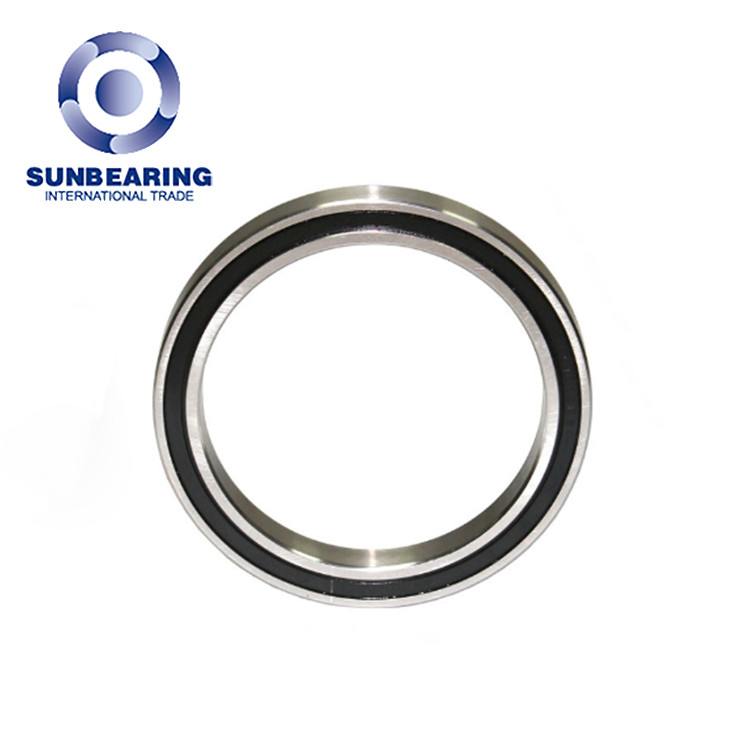

6820-ZZ Thin Section Radial Ball Bearing 100*125*13mm  SUNBEARING

6820-ZZ Thin Section Radial Ball Bearing 100*125*13mm  SUNBEARING

6820-ZZ Thin Section Radial Ball Bearing 100*125*13mm  SUNBEARING
6820-ZZ Thin Section Radial Ball Bearing 100*125*13mm  SUNBEARING6820-ZZ Thin Section Radial Ball Bearing 100*125*13mm  SUNBEARING6820-ZZ Thin Section Radial Ball Bearing 100*125*13mm  SUNBEARING
CategoriesDeep Groove Ball Bearing
BrandSUNBEARING Rolling Bearing Manufacturer
Model6820
ColorSilver
Inner Diameter100mm
Outer Diameter125mm
Width13mm
FOB portDALIAN
Terms of PaymentL/C, T/T, Paypal, Alibaba Trade Assurance
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information

6820-ZZ Thin Section Radial Ball Bearing 100*125*13mm  SUNBEARING

6820 ZZ bearing
Bore diameter:
100 mm
Static Load Rating

4750 lbf

21200 N

21.20 kN

Outside diameter:
125 mm
Dynamic Load Rating

4400 lbf

19600 N

19.60 kN

Overall width:
13 mm
Operating Temperature Range

-40 to 250 ºF

-40 to 120 ºC

Rows of Balls
Single
Limiting Speed - Oil
5600 RPM
Outer ring type:
UnSplit
Limiting Speed - Grease
4800 RPM
Internal clearance:
CN
Mass
0,313 Kg
Closure type:
ZZ
Calculation factor (f0)
16
Material
 High Carbon Chrome Steel
 da min

4.1339 in

105.000 mm

Precision
Class 0
ra max

0.0394 in

1.000 mm

Configuration
One
Da max

4.7244 in

120.000 mm

6820-ZZ Bearing Short Description

Very narrow, very light, and with extremely good spinning characteristics. 6820-ZZ bearing, the deep groove ball bearing is very narrow and can also be used with limited space. The low weight allows for extremely high speeds.
6820 bearing drawing
6820 bearing

6820-ZZ Deep Groove Ball Bearing Features

  • Thin section bearing with very thin, square cross-section

  • Suitable for space-saving installation in radial and axial directions

  • Suitable for very high speeds compared to deep groove ball bearings with a larger cross-section

  • Extra light series with compact dimensions and low weight

  • Suitable for radial loads and light axial loads in both directions

  • Offers high running accuracy, quiet running, and high speeds

  • Cover: contact lip cover on both sides made of metal (ZZ) for dust-proof

  • The good fixed bearing property, but can also be used as a floating bearing, each in both directions

6820-ZZ Ball Bearing Characteristic

Deep groove ball bearings are the most widely used bearing type and are extremely versatile. This kind of bearing has the characteristics of low friction and is optimized for low noise and low vibration to achieve high speed. They can bear radial and axial loads in both directions, are easy to install and require less maintenance than other types of bearings.
